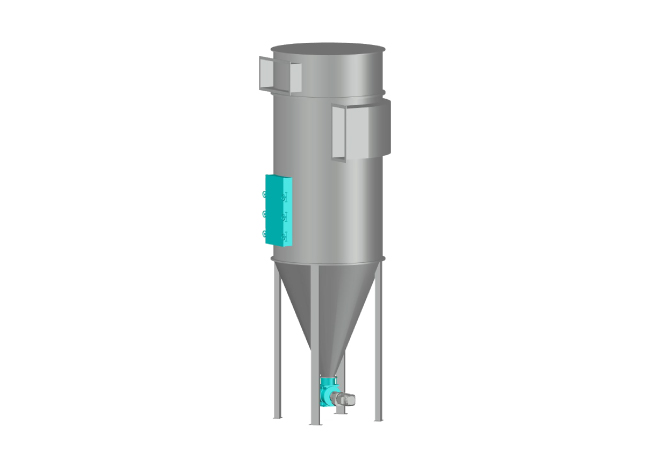

DMCZ低压脉冲除尘器专为低压环境下的工业粉尘分离应用而设计，可有效捕集空气中的粉尘颗粒，维持洁净的生产环境并保护设备正常运行。适用于连续运行工况，在粮食、面粉及饲料加工系统中均可提供稳定可靠的除尘性能。
| 型号 | 滤袋长度 (mm) |
过滤面积 (m²) |
处理风量 (m³/h) |

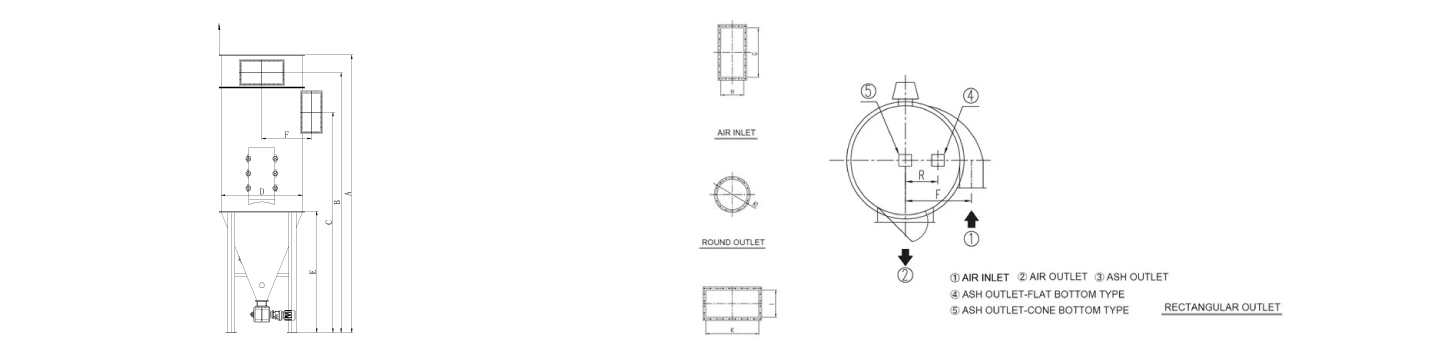

A (mm) |
B (mm) |
C (mm) |
D (mm) |
H×G (mm) |
KI (mm) |
耗气量 (m³/min) |
工作压力 (bar) |
关风器 (kW) |
| DMCZ-28/18 | 1800 | 16.9 | 2034–5085 | 4236 | 3951 | 3311 | 1140 | 275×500 | Φ450 | 0.26 | 0.5 | 0.75 |
| DMCZ-28/20 | 2000 | 18.9 | 2269–5672 | 4436 | 4154 | 3511 | 1140 | 275×500 | Φ450 | 0.26 | 0.5 | 0.75 |
| DMCZ-28/24 | 2400 | 22.8 | 2739–6848 | 4836 | 4551 | 3911 | 1140 | 275×500 | Φ450 | 0.26 | 0.5 | 0.75 |
| DMCZ-39/18 | 1800 | 25.4 | 3051–7627 | 4551 | 5266 | 3556 | 1370 | 290×640 | Φ500 | 0.39 | 0.5 | 0.75 |
| DMCZ-39/20 | 2000 | 28.4 | 3403–8509 | 3751 | 4466 | 3756 | 1370 | 290×640 | Φ500 | 0.39 | 0.5 | 0.75 |
| DMCZ-39/24 | 2400 | 34.2 | 4109–10272 | 5151 | 4866 | 4156 | 1370 | 290×640 | Φ500 | 0.39 | 0.5 | 0.75 |
| DMCZ-52/18 | 1800 | 33.9 | 4068–10169 | 4842 | 4557 | 3797 | 1580 | 340×740 | 790×410 | 0.52 | 0.5 | 1.1 |
| DMCZ-52/20 | 2000 | 37.8 | 4538–11345 | 5042 | 4757 | 3997 | 1580 | 340×740 | 790×410 | 0.52 | 0.5 | 1.1 |
| DMCZ-52/24 | 2400 | 45.7 | 5478–13696 | 5442 | 5157 | 4397 | 1580 | 340×740 | 790×410 | 0.52 | 0.5 | 1.1 |
| DMCZ-78/18 | 1800 | 50.8 | 6101–15254 | 5200 | 4915 | 4133 | 1840 | 485×785 | 845×460 | 0.78 | 0.5 | 1.1 |
| DMCZ-78/20 | 2000 | 56.7 | 6807–17017 | 5400 | 4954 | 4333 | 1840 | 485×785 | 845×460 | 0.78 | 0.5 | 1.1 |
| DMCZ-78/24 | 2400 | 68.5 | 8218–20544 | 5800 | 5354 | 4733 | 1840 | 485×785 | 845×460 | 0.78 | 0.5 | 1.1 |
| DMCZ-104/18 | 1800 | 67.8 | 8135–20338 | 5449 | 5165 | 4357 | 2020 | 520×835 | 1090×460 | 1.04 | 0.5 | 1.5 |
| DMCZ-104/20 | 2000 | 75.6 | 9076–22689 | 5649 | 6365 | 4557 | 2020 | 520×835 | 1090×460 | 1.04 | 0.5 | 1.5 |
| DMCZ-104/24 | 2400 | 91.3 | 10957–27392 | 6049 | 5765 | 4957 | 2020 | 520×835 | 1090×460 | 1.04 | 0.5 | 1.5 |
| DMCZ-130/18 | 1800 | 84.7 | 10169–25423 | 5903 | 5618 | 4778 | 2350 | 530×900 | 1200×470 | 1.3 | 0.5 | 1.5 |
| DMCZ-130/20 | 2000 | 94.5 | 11345–28362 | 6103 | 5818 | 4978 | 2350 | 530×900 | 1200×470 | 1.3 | 0.5 | 1.5 |
| DMCZ-130/24 | 2400 | 114.1 | 13696–34240 | 6503 | 6218 | 5378 | 2350 | 530×900 | 1200×470 | 1.3 | 0.5 | 1.5 |
| DMCZ-156/18 | 1800 | 101.7 | 12203–30507 | 6026 | 5741 | 4866 | 2440 | 550×970 | 1200×470 | 1.56 | 0.5 | 1.5 |
| DMCZ-156/20 | 2000 | 113.4 | 13614–34034 | 6226 | 5941 | 5066 | 2440 | 550×970 | 1200×470 | 1.56 | 0.5 | 1.5 |
| DMCZ-156/24 | 2400 | 137 | 16435–41088 | 6626 | 6341 | 5466 | 2440 | 550×970 | 1200×470 | 1.56 | 0.5 | 1.5 |
