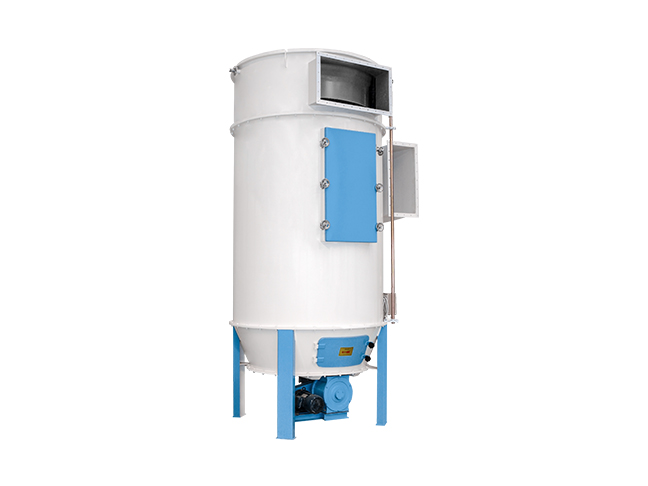

DMCP低压脉冲除尘器适用于低压工况下的工业粉尘分离与治理。设备可高效去除空气中的粉尘颗粒，保持良好的空气洁净度，并有效保护下游设备安全运行。设计运行可靠，适用于粮食、面粉及饲料加工系统的连续除尘作业，能够满足长期稳定运行需求。

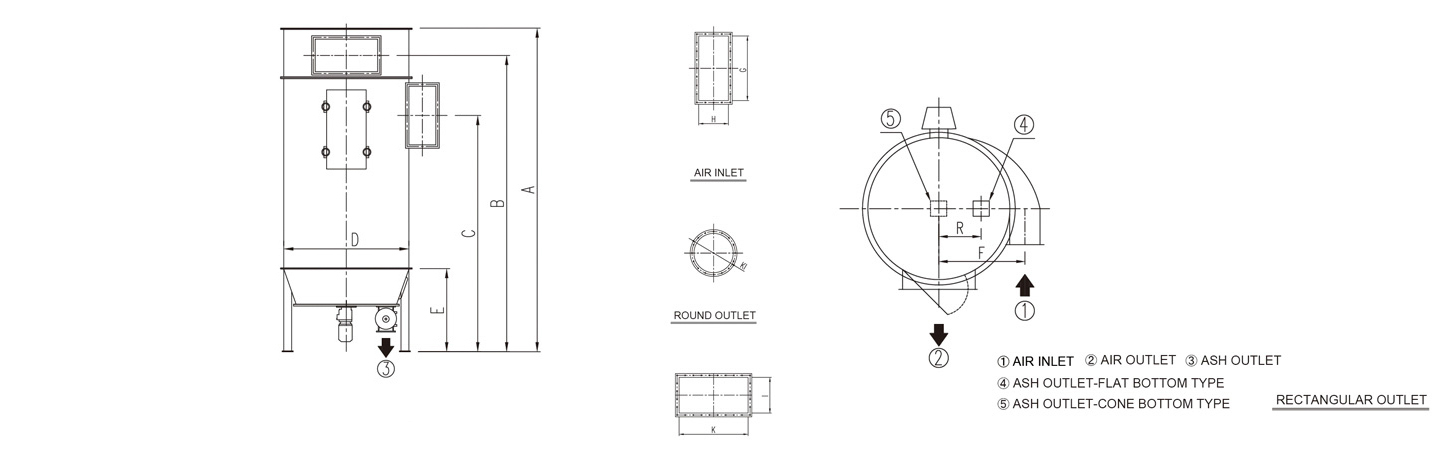

| 型号 | 滤袋长度 (mm) |
过滤面积 (m²) |
处理风量 (m³/h) |
A (mm) |
B (mm) |
C (mm) |
D (mm) |
H×G (mm) |
KI (mm) |
耗气量 (m³/min) |
工作压力 (bar) |
关风器 (kW) |
刮板机 (kW) |
| DMCP-28/18 | 1800 | 16.9 | 2034–5085 | 3378 | 3093 | 2504 | 1140 | 275×500 | Φ450 | 0.26 | 0.5 | 0.75 | 0.75 |
| DMCP-28/20 | 2000 | 18.9 | 2269–5672 | 3578 | 3293 | 2704 | 1140 | 275×500 | Φ450 | 0.26 | 0.5 | 0.75 | 0.75 |
| DMCP-28/24 | 2400 | 22.8 | 2739–6848 | 3978 | 3696 | 3104 | 1140 | 275×500 | Φ450 | 0.26 | 0.5 | 0.75 | 0.75 |
| DMCP-39/18 | 1800 | 25.4 | 3051–7627 | 3443 | 3158 | 2449 | 1370 | 290×640 | Φ500 | 0.39 | 0.5 | 0.75 | 0.75 |
| DMCP-39/20 | 2000 | 28.4 | 3403–8509 | 3643 | 3358 | 2649 | 1370 | 290×640 | Φ500 | 0.39 | 0.5 | 0.75 | 0.75 |
| DMCP-39/24 | 2400 | 34.2 | 4109–10272 | 4043 | 3758 | 3049 | 1370 | 290×640 | Φ500 | 0.39 | 0.5 | 0.75 | 0.75 |
| DMCP-52/18 | 1800 | 33.9 | 4068–10169 | 3443 | 3158 | 2399 | 1580 | 340×740 | 790×410 | 0.52 | 0.5 | 0.75 | 1.1 |
| DMCP-52/20 | 2000 | 37.8 | 4538–11345 | 3643 | 3358 | 2599 | 1580 | 340×740 | 790×410 | 0.52 | 0.5 | 0.75 | 1.1 |
| DMCP-52/24 | 2400 | 45.7 | 5478–13696 | 4043 | 3758 | 2999 | 1580 | 340×740 | 790×410 | 0.52 | 0.5 | 0.75 | 1.1 |
| DMCP-78/18 | 1800 | 50.8 | 6101–15254 | 3443 | 3158 | 2376 | 1840 | 485×785 | 845×460 | 0.78 | 0.5 | 0.75 | 1.1 |
| DMCP-78/20 | 2000 | 56.7 | 6807–17017 | 3643 | 3358 | 2576 | 1840 | 485×785 | 845×460 | 0.78 | 0.5 | 0.75 | 1.1 |
| DMCP-78/24 | 2400 | 68.5 | 8218–20544 | 4043 | 3758 | 2976 | 1840 | 485×785 | 845×460 | 0.78 | 0.5 | 0.75 | 1.1 |
| DMCP-104/18 | 1800 | 67.8 | 8135–20338 | 3443 | 3158 | 2351 | 2020 | 520×835 | 1090×460 | 1.04 | 0.5 | 0.75 | 1.5 |
| DMCP-104/20 | 2000 | 75.6 | 9076–22689 | 3643 | 3358 | 2551 | 2020 | 520×835 | 1090×460 | 1.04 | 0.5 | 0.75 | 1.5 |
| DMCP-104/24 | 2400 | 91.3 | 10957–27392 | 4043 | 3758 | 2951 | 2020 | 520×835 | 1090×460 | 1.04 | 0.5 | 0.75 | 1.5 |
| DMCP-130/18 | 1800 | 84.7 | 10169–25423 | 3443 | 3158 | 2391 | 2350 | 530×900 | 1200×470 | 1.3 | 0.5 | 0.75×2 | 1.5 |
| DMCP-130/20 | 2000 | 94.5 | 11345–28362 | 3643 | 3358 | 2591 | 2350 | 530×900 | 1200×470 | 1.3 | 0.5 | 0.75×2 | 1.5 |
| DMCP-130/24 | 2400 | 114.1 | 13696–34240 | 4043 | 3758 | 2919 | 2350 | 530×900 | 1200×470 | 1.3 | 0.5 | 0.75×2 | 1.5 |
| DMCP-156/18 | 1800 | 101.7 | 12203–30507 | 3528 | 3243 | 2369 | 2440 | 550×970 | 1200×470 | 1.56 | 0.5 | 0.75×2 | 1.5 |
| DMCP-156/20 | 2000 | 113.4 | 13614–34034 | 3728 | 3553 | 2569 | 2440 | 550×970 | 1200×470 | 1.56 | 0.5 | 0.75×2 | 1.5 |
| DMCP-156/24 | 2400 | 137 | 16435–41088 | 4128 | 3843 | 2969 | 2440 | 550×970 | 1200×470 | 1.56 | 0.5 | 0.75×2 | 1.5 |
